Gaia DR3 156359727521343744

Eclipsing binaryKnown (independent confirmation)

Notes

Detached eclipsing binary, near-equal eclipses (~27% and ~23% deep). Secondary at phase 0.5, so the orbit is likely circular. Already catalogued by ASAS-SN and ATLAS; my TESS period matches Gaia to 0.002%.

Type	Eclipsing binary
Status	Known (independent confirmation)

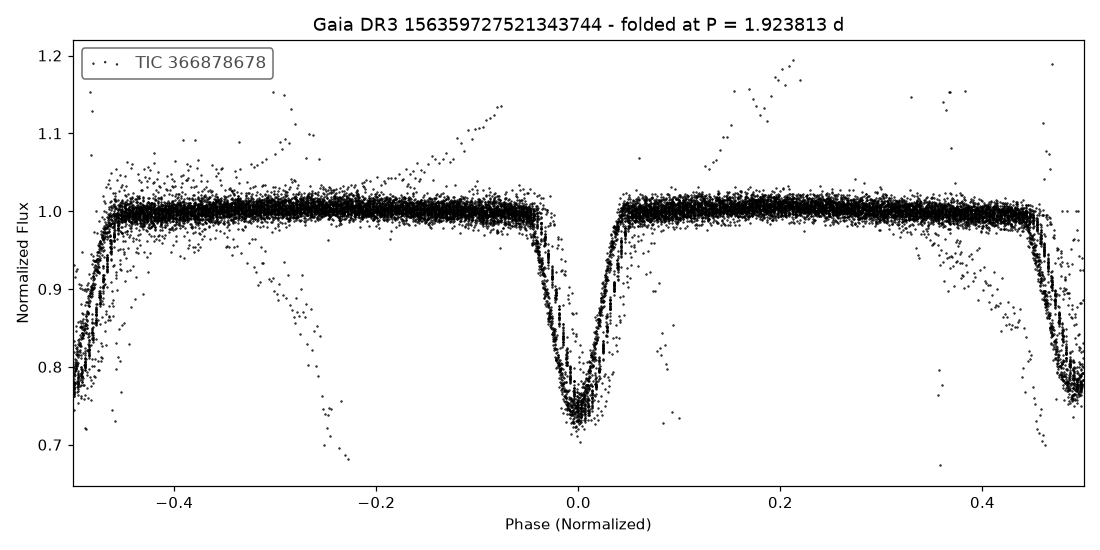

Period (days)	1.923813

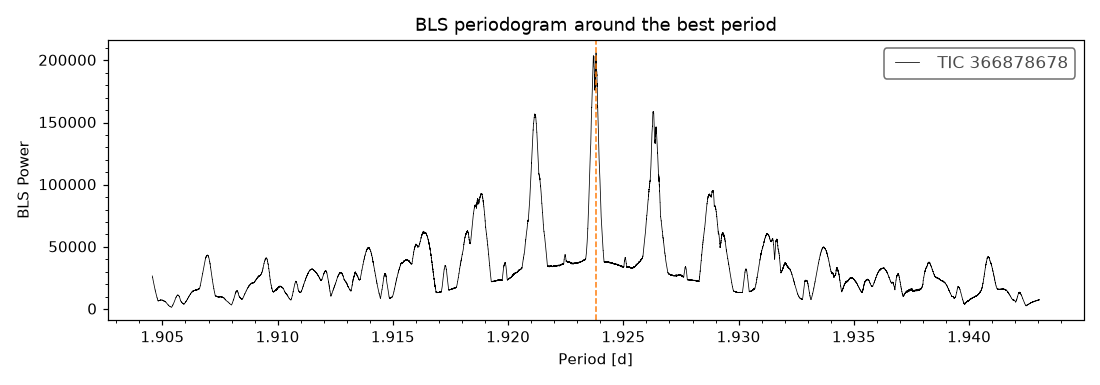

Period source	BLS on TESS QLP sectors [19, 43, 44, 71]
Epoch of minimum (BJD)	2458818.00619
Eclipse / dip depth	18.1% (primary eclipse)
RA (deg)	77.311024
Dec (deg)	30.054067
Gaia G mag	13.204
Distance (pc)	~1,259 (from Gaia parallax)
Gaia DR3 ID	156359727521343744
TIC ID	366878678
Other names	ASASSN-V J050914.65+300315.0, ATLAS J077.3110+30.0540

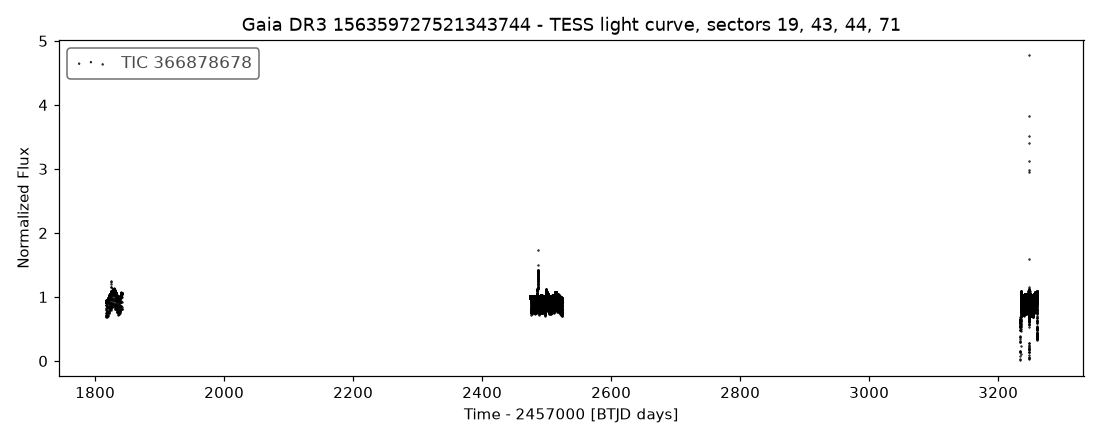

Data used	TESS sectors 19, 43, 44, 71
Other periods	Gaia DR3: 1.923809 d · ASAS-SN: 1.923700 d
Found by	By hand
Date	2026-10-01
Look it up	SIMBAD · VSX · ESASky · ExoFOP

✦ Artist's impression

AI-painted · made locally

What this picture shows

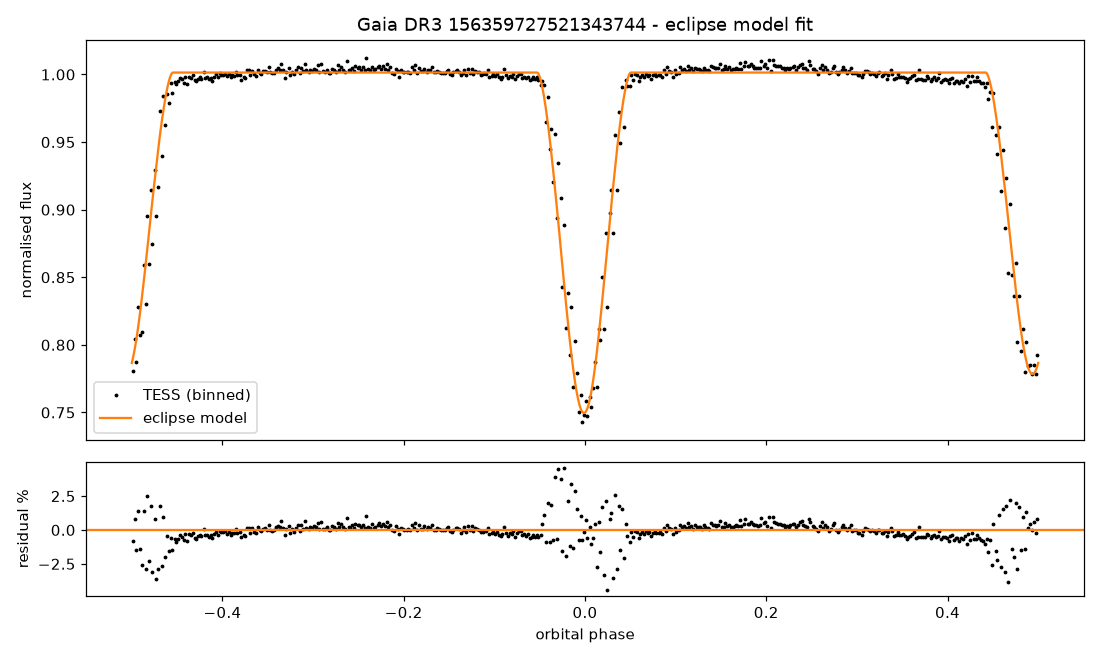

Artist's impression based on the measured data. Two stars of about 8,200 K and 7,800 K (1.8 and 1.7 times the Sun's radius, ~1.9 and ~1.8 solar masses) orbit each other every 46.2 hours, 7.0 million km apart (the Sun-Mercury distance is 58 million km). We see the orbit at 81 degrees (90 = exactly edge-on), close enough to edge-on that they eclipse each other. Sizes, separation, tilt and colours come from fitting the TESS eclipses (see the model-fit plot) plus Gaia's temperature; masses assume normal main-sequence stars. The painted look, surface detail and background were added by a locally run image AI; the stars' sizes, colours and spacing follow the measured data. The secondary eclipse arrives 14 minutes earlier than half an orbit after the primary, a sign of a slightly oval (eccentric) orbit: e*cos(omega) = -0.0081.

How it was made

Painted by an image AI (DreamShaper XL, a Stable Diffusion XL model) running locally on a home PC, over a 3D layout built from the measured data. No cloud services.

Data files

Download everything (.zip)
