TIC 270584021

Eclipsing binaryNew candidate

Notes

Found automatically by hunt.py in TESS sector 2 (flagged in 1 sector(s)). Detection score 1996.2. Not in VSX, ASAS-SN or ZTF variable catalogues at the time of the search; not in Gaia DR3's variable lists. Unchecked by hand yet: verify the period, nearby stars and a wider catalogue search.

Type	Eclipsing binary
Status	New candidate
Period (days)	3.9529284
Period source	eclipse fit to TESS sectors [2, 29, 69, 96]
Eclipse / dip depth	16.9%
Amplitude	4.3%
RA (deg)	347.707
Dec (deg)	-34.3792
TESS mag	11.51
TIC ID	270584021
SIMBAD name	not in SIMBAD
Nearest known variable	Gaia DR3 6555347938946736896 (YSO), 111" away

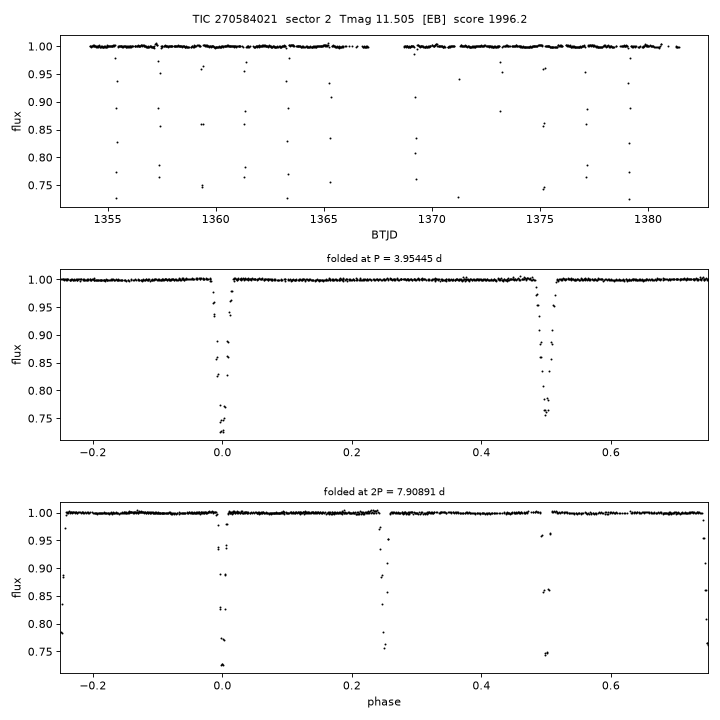

Data used	TESS sector 2 (QLP)
Found by	hunt.py (automatic)
Date	2026-10-01
Look it up	SIMBAD · VSX · ESASky · ExoFOP

✦ Artist's impression

AI-painted · made locally

What this picture shows

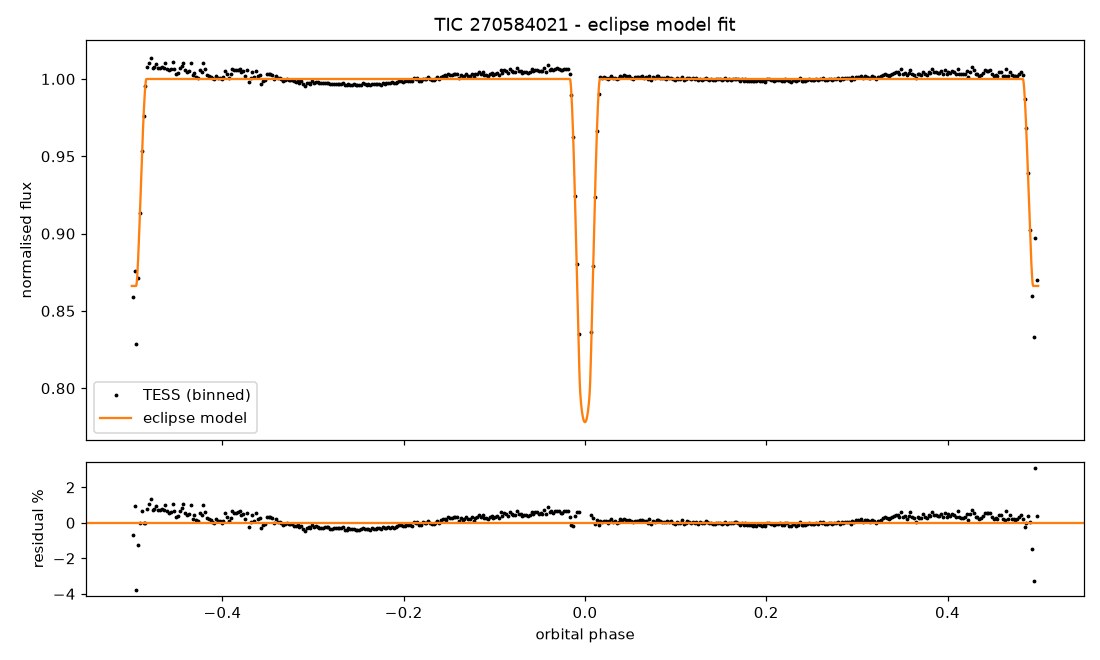

Artist's impression of an UNCONFIRMED candidate, based on its measured data. Two stars of about 4,100 K and 3,800 K (0.8 and 0.4 times the Sun's radius, ~0.7 and ~0.6 solar masses) orbit each other every 94.9 hours, 7.9 million km apart (the Sun-Mercury distance is 58 million km). We see the orbit at 89 degrees (90 = exactly edge-on), close enough to edge-on that they eclipse each other. Sizes, separation, tilt and colours come from fitting the TESS eclipses (see the model-fit plot) plus Gaia's temperature; masses assume normal main-sequence stars. The painted look, surface detail and background were added by a locally run image AI; the stars' sizes, colours and spacing follow the measured data.

How it was made

Painted by an image AI (DreamShaper XL, a Stable Diffusion XL model) running locally on a home PC, over a 3D layout built from the measured data. No cloud services.

Data files

Download everything (.zip)
